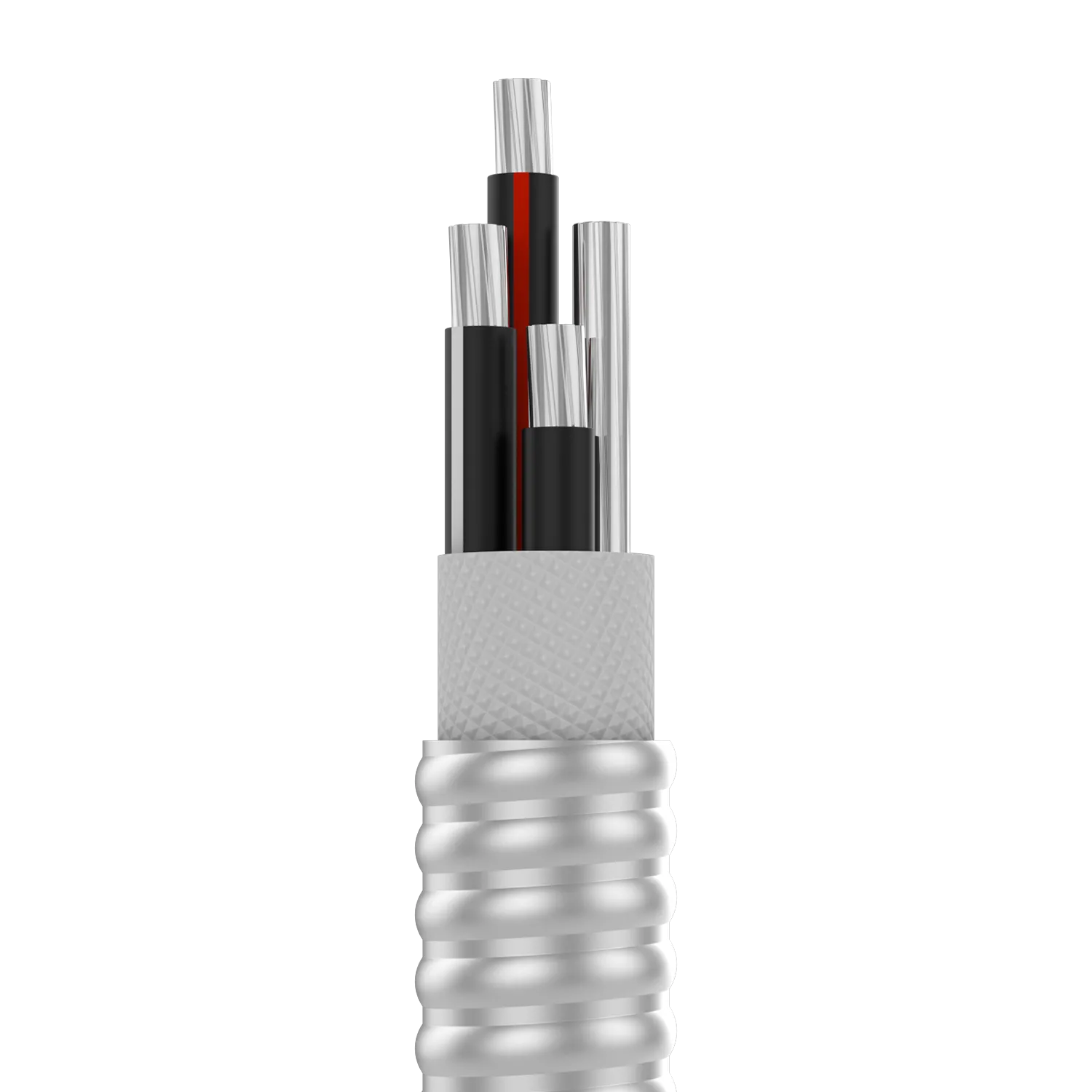

Conductor: Annealed compact stranded AA-8000 series Aluminum Conductor Material (ACM).
Insulation: Low coefficient of friction, abrasion, moisture, and heat resistant colored polyvinyl chloride (PVC).
Covering: Low coefficient of friction, abrasion, moisture, and heat resistant translucent Nylon polyamide.
Assembly: Cabled assembly with an equipment grounding conductor and a binder tape overall. A
Armor: Aluminum Interlocked Armor (AIA).
Not Under Tension: 7x outer diameter
Under Tension (During Pull): 10.5x outer diameter
These cables are manufactured and tested to meet or exceed the following standards:
| Item # | Cable Description |
Conductor Size |
Conductors |
Ground Size |
Cabled Core Diameter |
Overall Diameter |
Al Weight |
Net Weight |
| A4-03MC6 | 4-4-4+6 | 4 | 3 | 6 | 0.66 | 0.957 | 312 | 364 |
| A3-03MC6 | 3-3-3+6 | 3 | 3 | 6 | 0.71 | 1.011 | 353 | 411 |
| A2-03MC6 | 2-2-2+6 | 2 | 3 | 6 | 0.78 | 1.076 | 404 | 468 |
| A2-03MC4 | 2-2-2+4 | 2 | 3 | 4 | 0.78 | 1.076 | 419 | 483 |
| A1-03MC4 | 1-1-1+4 | 1 | 3 | 4 | 0.89 | 1.19 | 490 | 580 |
| A1/0-03MC4 | 1/0-1/0-1/0+4 | 1/0 | 3 | 4 | 0.97 | 1.27 | 567 | 667 |
| A2/0-03MC4 | 2/0-2/0-2/0+4 | 2/0 | 3 | 4 | 1.06 | 1.356 | 663 | 772 |
| A3/0-03MC4 | 3/0-3/0-3/0+4 | 3/0 | 3 | 4 | 1.16 | 1.457 | 779 | 900 |
| A4/0-03MC2 | 4/0-4/0-4/0+2 | 4/0 | 3 | 2 | 1.27 | 1.569 | 952 | 1086 |
| A250-03MC2 | 250-250-250+2 | 250 | 3 | 2 | 1.41 | 1.713 | 1088 | 1265 |
| A250-03MC3/0 | 250-250-250+3/0 | 250 | 3 | 3/0 | 1.41 | 1.713 | 1186 | 1363 |
| A300-03MC1 | 300-300-300+1 | 300 | 3 | 1 | 1.52 | 1.821 | 1269 | 1460 |
| A350-03MC1 | 350-350-350+1 | 350 | 3 | 1 | 1.62 | 1.92 | 1431 | 1636 |
| A400-03MC1 | 400-400-400+1 | 400 | 3 | 1 | 1.71 | 2.013 | 1591 | 1810 |
| A500-03MC1 | 500-500-500+1 | 500 | 3 | 1 | 1.88 | 2.179 | 1907 | 2148 |
| A500-03MC2/0 | 500-500-500+2/0 | 500 | 3 | 2/0 | 1.88 | 2.179 | 1954 | 2196 |
| A500-03MC3/0 | 500-500-500+3/0 | 500 | 3 | 3/0 | 1.88 | 2.179 | 1988 | 2229 |
| A600-03MC1 | 600-600-600+1 | 600 | 3 | 1 | 2.09 | 2.392 | 2236 | 2548 |
| A600-03MC1/0 | 600-600-600+1/0 | 600 | 3 | 1/0 | 2.09 | 2.392 | 2257 | 2569 |
| A750-03MC1/0 | 750-750-750+1/0 | 750 | 3 | 1/0 | 2.30 | 2.597 | 2723 | 3068 |
| A750-03MC3/0 | 750-750-750+3/0 | 750 | 3 | 3/0 | 2.30 | 2.597 | 2783 | 3128 |
| A6-04MC6 | 6-6-6-6+6 | 6 | 4 | 6 | 0.58 | 0.877 | 277 | 319 |
| A4-04MC6 | 4-4-4-4+6 | 4 | 4 | 6 | 0.74 | 1.036 | 366 | 436 |
| A3-04MC6 | 3-3-3-3+6 | 3 | 4 | 6 | 0.80 | 1.097 | 419 | 496 |
| A2-04MC4 | 2-2-2-2+4 | 2 | 4 | 4 | 0.87 | 1.169 | 500 | 585 |
| A1-04MC4 | 1-1-1-1+4 | 1 | 4 | 4 | 1.00 | 1.297 | 590 | 709 |
| A1/0-04MC4 | 1/0-1/0-1/0-1/0+4 | 1/0 | 4 | 4 | 1.09 | 1.386 | 690 | 822 |
| A2/0-04MC4 | 2/0-2/0-2/0-2/0+4 | 2/0 | 4 | 4 | 1.18 | 1.483 | 813 | 959 |
| A3/0-04MC4 | 3/0-3/0-3/0-3/0+4 | 3/0 | 4 | 4 | 1.30 | 1.596 | 965 | 1126 |
| A4/0-04MC2 | 4/0-4/0-4/0-4/0+2 | 4/0 | 4 | 2 | 1.42 | 1.722 | 1183 | 1361 |
| A250-04MC1 | 250-250-250-250+1 | 250 | 4 | 1 | 1.584 | 1.884 | 1376 | 1612 |
| A300-04MC1 | 300-300-300-300+1 | 300 | 4 | 1 | 1.704 | 2.004 | 1590 | 1846 |
| A350-04MC1/0 | 350-350-350-350+1/0 | 350 | 4 | 1/0 | 1.815 | 2.115 | 1823 | 2097 |
| A400-04MC1/0 | 400-400-400-400+1/0 | 400 | 4 | 1/0 | 1.919 | 2.219 | 2034 | 2325 |
| A500-04MC3/0 | 500-500-500-500+3/0 | 500 | 4 | 3/0 | 2.105 | 2.405 | 2507 | 2830 |
| A600-04MC3/0 | 600-600-600-600+3/0 | 600 | 4 | 3/0 | 2.344 | 2.644 | 2939 | 3354 |
| A750-04MC3/0 | 750-750-750-750+3/0 | 750 | 4 | 3/0 | 2.574 | 2.874 | 3552 | 4012 |
| A750-04MC750 | 750-750-750-750+750 | 750 | 4 | 750 | 2.574 | 2.874 | 4111 | 4571 |
Show
entries.
Notes:
